Tilt & Turn Door

Our Tilt & Turn Window / Door system is designed to give the user multiple options for ventilation by combining elements of our window and door systems.

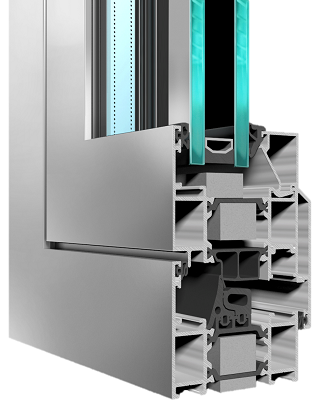

It comes with a variety of profile possibilities as it is manufactured using our high-performance ST profiles. The Tilt & Turn door comes with excellent acoustics and weather performance characteristics.

Perfect for Multi-Level Developments

Excellent solution for condominiums & student accommodations

  • Available with all ST Windows Systems
  • Superb thermal performance as low as 0.084 Btu (ST90)
  • Eco-friendly polyamide core
  • Glazing thickness of up to 2 7/16″ (ST90)
  • Identical sightlines throughout
  • Can be pre-assembled in-house saving installation time/cost
  • Available with single, dual color or anodized finish.
  • Polyester powder coating to ASTM 2604.
  • Matching rebate doors available
  • Evaluated and tested to AAMA 101 for windows and doors meeting the CW50 grade.



Opening Possibilities
Tilt & Turn

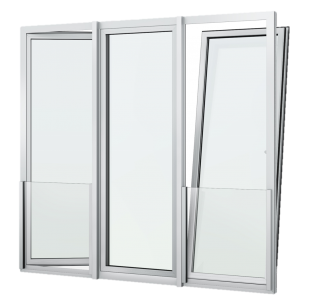

The tilt and turn mechanism allows the user to open the window in two ways. Turning the handle 90°, the window will tilt inwards at the top like a hopper. At 180°, the window will swing inwards, opening fully like a casement window.
Tilt and Turn windows are the perfect solution for trickle or purge ventilation and for hard-to-reach areas that require ease of access for cleaning or maintenance.

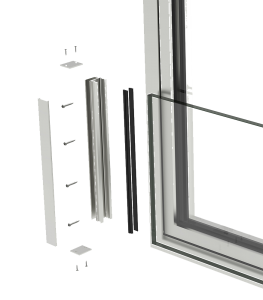

Easily Integrated with our Juliet Balcony for High Fall Protection

Combined with our Juliet Balcony, the Tilt and Turn Door offers the user flexibility of trickle or purge ventilation, with the peace of mind of high fall protection. All without obstructing the view.

Tilt & Turn Door with Juliet Balcony

Fully Tested to the Highest AAMA Standards

Tilt & Turn Door 2- APA Facade Systems

Our Tilt and Turn Door system is evaluated and tested to AAMA 101 for windows and doors meeting the CW PG50 grade.

It is available with an anodized, single or dual color finish with polyester powder coating to the ASTM 2604 standard
