Thermally Enhanced Windows
Our European standard, high performance window systems have been designed to meet the requirements of LEED and BREEAM. They come with a variety of opening possibilities and thermal performances as low as 0.084 Btu (th)/hour/foot²/°F. This significantly reduces energy use and operating costs.
Manufactured with durable aluminum profiles, our high performance window systems are evaluated and tested to AAMA 101 for windows and doors meeting the CW PG50 grade. They are available anodized, or with a single or dual color polyester powder coating finish, to meet ASTM 2604.

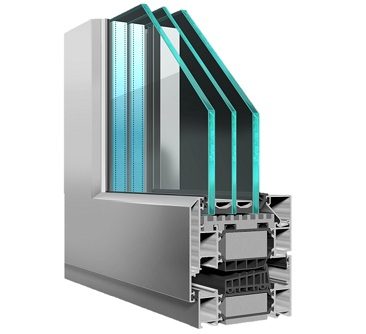

ST90 Window
Energy Efficiency: Passive House
3 9/16″
As low as 0.084 Btu/ft ² hr °F
4′ 11″ x 6′ 10 “
*Dependent on opening type, please contact our technical department for specific details.
- Tilt & turn/Turn & tilt
- Awning
- Push-out casement
- In-swing casement
- Hopper
+ 6.24 psf
– 6.24 psf
+50 psf
– 50 psf
10.65 psf
40 db

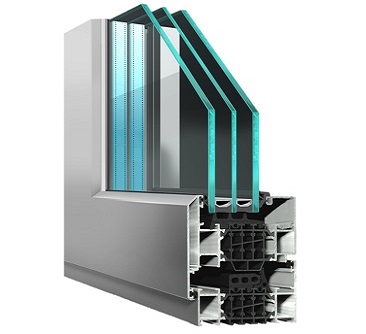

ST80 Window
Energy Efficiency: High-Performance
3 1/8”
As low as 0.18 Btu/ft ² hr °F
4′ 11″ x 6′ 10″
*Dependent on opening type, please contact our technical department for specific details.
- Tilt & turn/Turn & tilt
- Push-out casement
- In-swing casement
- Awning
- Hopper
+ 6.24 psf
– 6.24 psf
+50 psf
-50 psf
10.65 psf
40 db
ST70 HI
Energy Efficiency: Extreme-Performance
2 3/4”
As low as 0.170 Btu/ft ² hr °F
4′ 11″ x 6′ 10″
*Dependent on opening type, please contact our technical department for specific details.
- Tilt & turn/Turn & tilt
- Push-out casement
- In-swing casement
- Awning
- Hopper
+6.24 psf
-6.24 psf
+50 psf
-50psf
10.65 psf
40 db
ST70 Concealed Sash
Energy Efficiency: High-Performance
2 3/4” slim design
As low as 0.176 Btu/ft ² hr °F
3′ 11 1/4″ x 7′ 10 1/2″
*Dependent on opening type, please contact our technical department for specific details.
- Tilt and turn
- In-swing casement
- Awning
+6.24 psf
-6.24 psf
+50 psf
-50 psf
10.65 psf
46 db

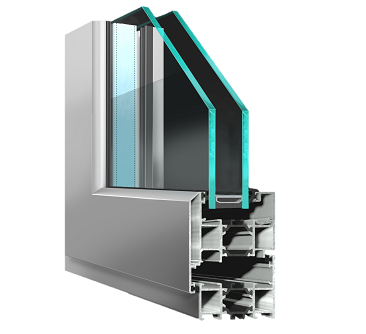

ST60 Window
Energy Efficiency: Good-Performance
2 3/8”
0.317 Btu/ft ² hr °F
Up to 4′ 11” x 6′ 10”
*Dependent on opening type, please contact our technical department for specific details.
- Tilt & Turn/Turn & Tilt
- Push Out Casement
- In Swing Casement
- Awning
- Hopper
- Parallel Sash
+ 6.24 psf
– 6.24 psf
+ 50 psf
– 50 psf
10.65 psf
40 db
Life Enhancing Windows
Energy Efficiency: Dependent on chosen system
From 2 3/8″ (ST60) to 3 9/16″ (ST90)
0.317 Btu/ft ² hr °F (ST60) to 0.084 Btu/ft ² hr °F (ST90)
Suggested maximum dimensions of 2′ 11″ x 4′ 11″
Turn & Tilt – Meets the requirements of the Americans with Disabilities Act (ADA)
+6.24 psf
– 6.24 psf
+50 psf
-50 psf
40 db
10.65 psf
Strength and durability of our Aluminum windows
To add to the already strong aluminum design, we fabricate all of our ST windows with cast aluminum corner and transom cleats.
Our window systems also come with heavy-duty friction hinges and multipoint locking systems for added security. The versatility of the locking system allows a design team to incorporate extra-large sashes.
