Pharmaceutical
Grifols International Logistics Centre
Grifols International Logistics Centre Dublin The Brief System Used: TB50 SG Curtain Wall & TB50 SG CFA Glass Fins Location: Dublin

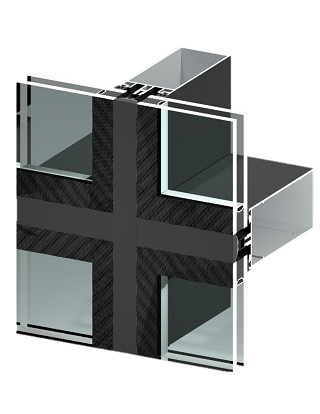

TB60 SG Curtain Wall
The TB60 SG is a structurally glazed curtain wall system. Like the capped alternative, it has been designed to accommodate large, heavy glass units.
It has an external sightline of 2 3/8″ and provides a more streamlined aesthetic exterior appearance to that of a standard pressure plate and capped system.
The TB60 SG’s standard mullion depths are available from 3-9/16” to 10-13/16”. With glazing opportunities of up to 2- 1/16”.
It has an external sightline of 2 3/8″ and provides a more streamlined aesthetic exterior appearance to that of a standard pressure plate and capped system.
The TB60 SG’s standard mullion depths are available from 3-9/16” to 10-13/16”. With glazing opportunities of up to 2- 1/16”.
TB60 SG Curtain Wall
Specificially Designed and Adapted for Large Glass Dimensions
- Reinforced profiles to accommodate larger, heavier glass
- Standard mullion depths available from 3-9/16” to 10-13/16”
- Glazing thickness variance of up to 2-1/16”
- 2 3/8” external sightline
- Excellent thermal and acoustic performance
- Integrated concealed framed awnings available
- Integrated solar shading systems available
- Evaluated and tested to AAMA 501
Easily Integrated Curtain Wall Ventilation Systems
Add ventilation to your storefront, roof lights or any part of the building envelope with our range of Concealed Frame Awnings. Our CFA’s are thermally enhanced window systems designed to fit seamlessly into our range of pressure plate and capped curtain wall systems.
SG External Cap Options
