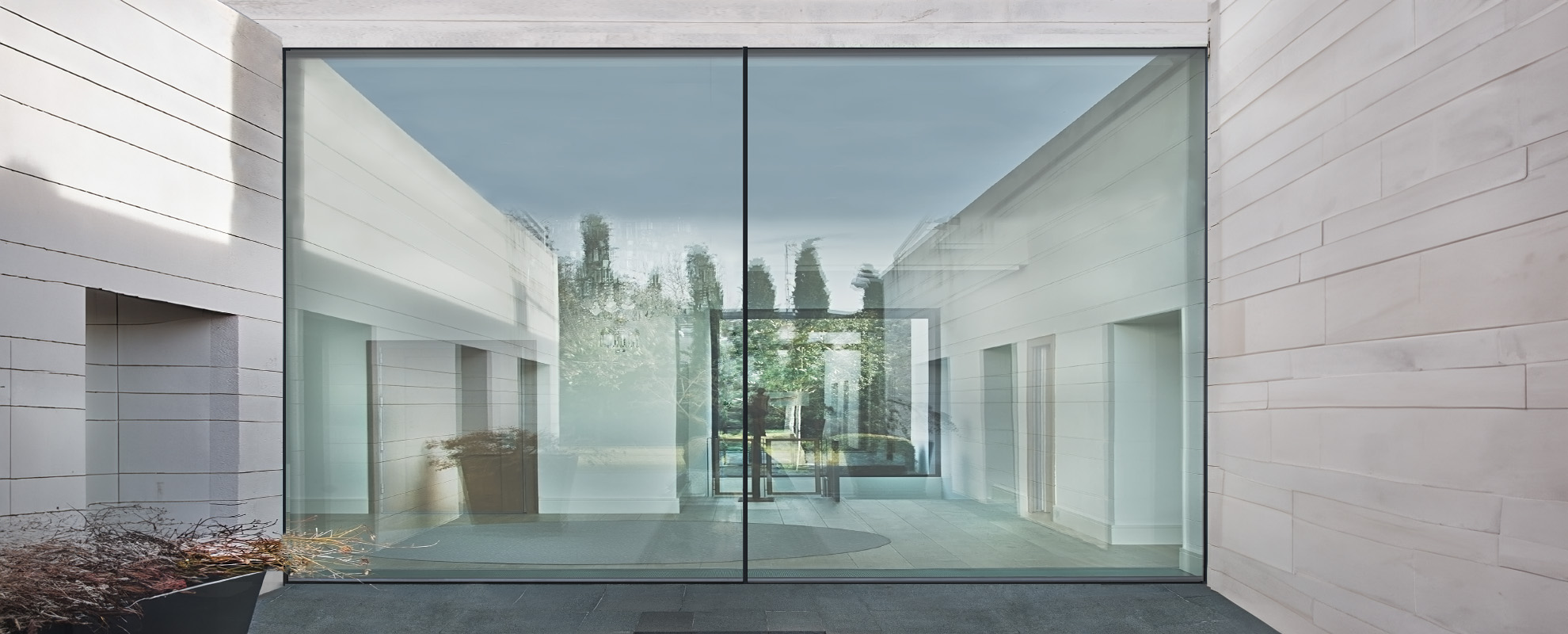

APA Vision Plus Sliding
The APA Vision Plus Sliding Door System redefines modern home design by combining panoramic views, exceptional thermal efficiency, and smooth, effortless operation.
Engineered for large openings and floor-to-ceiling glazing, this premium aluminium system creates bright, open spaces that seamlessly connect indoor and outdoor living areas.
Its ultra-slim interlock design allows for maximum glass surface and minimal framing — delivering a contemporary architectural aesthetic with outstanding performance.
Precision-made from thermally broken aluminium and high-performance glazing, the system ensures superior insulation, acoustic comfort, and weather protection for year-round living comfort.
Perfect for high-end residential projects, the Vision Plus offers the best of both worlds: minimalist design and robust engineering for enduring performance and style.
For more information on our out APA Vision Plus Sliding Door System, can get in touch with a member of our team here.
- Frame depth: 180 mm thermally broken aluminium system
- Sash depth: 54 mm
- Ultra-slim visible interlock of only 25 mm for maximised glass area
- Whole-door Uw value as low as 0.9 W/m²K (triple glazed)
- Air permeability: Class 4 (EN 12207)
- Water tightness: Class E1200 (EN 12208)
- Wind resistance: Class C5 (EN 12210)
- Acoustic insulation up to 43 dB (depending on glass type)
- Maximum sash height up to 4,000 mm / width up to 4,000 mm
- Maximum sash weight up to 400 kg per panel
- Double or triple track options for multi-panel configurations
- Concealed drainage and hidden frame installation for flush thresholds
- Stainless-steel rollers for smooth, silent movement
- Single or dual-colour powder-coated finish to Qualicoat standards
- Manufactured from recyclable aluminium with eco-friendly thermal breaks
| Thermal transmittance | Uw ≥ 0.9 (W/m²K) | |
| Acoustic insulation | Rw up to 43 dB | |
| Air permeability | Class 4 | |
| Water tightness | Class 7A / 9A | |
| Wind resistance | Class C3 / C4 | |
| Sections | Frame 180 mm / 278 mm triple track / Sash 69 mm | |
| Glazing | Max. 56 mm, Min. 36 mm | |
| Maximum sash weight | 400 kg Manual / 700 kg Motorised |
