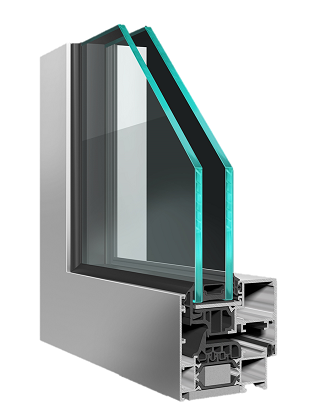

ST70 Concealed Sash

Our ST70 Concealed Sash window has a slim design, with a surface of only 2 3/4” from the exterior. The slim profile provides the inside of the building with a substantial increase in luminosity.

A 1 ³/₈” thermally broken area and the insertion of a polyamide core (ranging from ¹⁵/₁₆” to 1 ³/₄“) in the frame and sash allow it to reach values as low as 0.1761 Btu/ft ² hr °F of transmission, maximizing its energy efficiency.

ST70 Concealed Sash

2 3/4″ Window System

Tech Features

Slim design with a surface of only 2 ³/₄” from the exterior.
1 ³/₈” thermally broken area.
Insertion of ¹⁵/₁₆” to 1 ³/₄” polyamide core.
Values of up to 0.1761 Btu/ft ² hr °F of transmission.
Possibility of fitting 1 ⁹/₁₆” high-performance units.
Profile Thickness – ¹/₁₆“
Maximum Size/Sash – 51 ³/₁₆” x 94 ¹/₂“
Maximum Weight/Sash – 352lbs.
Available with single, dual or anodized finish.
Polyester powder coating to AAMA 2604.
Evaluated and tested to AAMA 101 standards for windows and doors, meeting the CW PG50 grade.

Energy Efficiency

High Performance

Product Manual

Available soon

Product Brochure

Residential Brochure

Request a Callback

Name
First Last
Email
Consent*
Yes, I agree to receiving e-mail communication from APA Facade Systems in relation to our services*

Opening Possibilities

1. In Swing Casement Window

Our ST70 Concealed Sash is available as a fixed/picture window or an in swinging casement window. This system is not available as a push out casement.

The main benefit of installing casement windows is their flexibility. The ST70 Concealed Sash can open up to 90° internally offering unlimited ventilation.

Opening Possibilities

2. Hopper

Hopper windows are an excellent solution for efficient ventilation. Hinged at the bottom of the frame, tilting inwards, they leave a small opening at the top of the frame. Hopper windows are often found on multi-level or high-rise buildings

as they provide both ventilation, and high fall protection. Easily integrated with our casement window systems, hopper windows can also be installed over doors for added ventilation and to increase natural light.

Opening Possibilities

3. Tilt & Turn Window

The tilt and turn mechanism allows the user to open the window in two ways. Turning the handle 90°, the window will tilt inwards at the top like a hopper.
At 180°, the window will swing inwards, opening fully like a casement window.

Tilt and Turn windows are the perfect solution for trickle or purge ventilation and for hard-to-reach areas that require ease of access for cleaning or maintenance.

Opening Possibilities

4. Awning

Awning windows are hinged at the top of the frame and swing outward from the bottom. They are the perfect solution to ventilate the room, even in rainy weather.

Like our hopper windows, awning windows can be easily integrated with our casement windows or door systems to improve ventilation and increase natural light.
