The Glucksman Library

University of Limerick

The Brief

System Used:

TB50 SG Curtain Wall

TB50 SG CFA

23 ft. High Glass Fins

Location:

University of Limerick

Client:

BAM

Architect:

RKD Architects

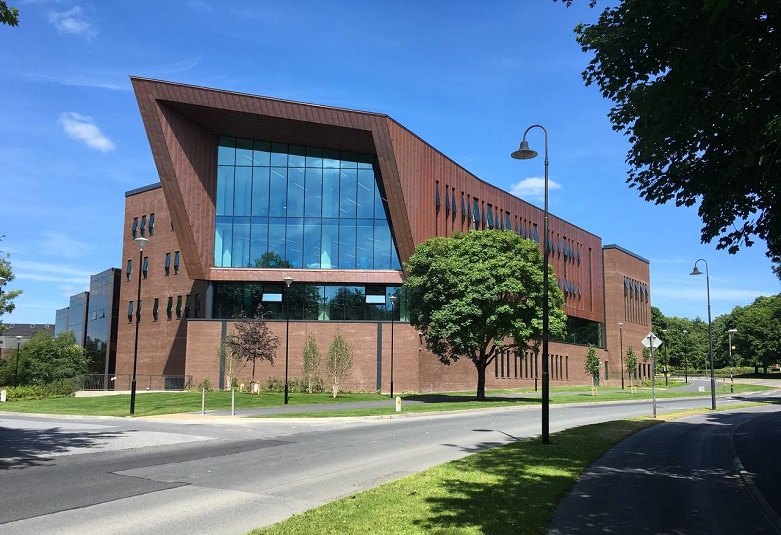

The Glucksman Library officially opened its doors on the 22nd of June 2018. Located in the University of Limerick in Ireland, it is the biggest on-campus library in Ireland and one of the most digitally advanced in the world.

This $37m BAM development is double the size of the original library and includes an ARC – Automated Reserve Collection facility, a 32 ft high vault to store over 500,000 books, operated by a robotic crane for easy retrieval.

The dynamic new building was designed by RKD Architects and has been dramatically reimagined and extended to 81,800 sq. ft. with a sequence of interlinked, beautifully proportioned spaces with large curtain wall screens and windows increasing the natural light.

System Used: TB50 SG Curtain Wall

Our TB50 SG curtain wall system was expertly installed on this project by Season Master Double Glazing. This structurally glazed curtain wall system secures the glass by means of specially designed and tested toggles that are integral to the central seal of the double-glazed units. Silicone sealed, weather-resistant joints produce a flush, noninterrupted finish.

Curtain Wall Ventilation Solutions

Our structurally glazed concealed frame awnings were installed to add ventilation to the internal environment of the building. They fit seamlessly into our TB50 SG curtain wall system, providing a streamlined, aesthetically pleasing finish.

For extra support to the curtain wall, 23 ft. high glass fins were bonded to a 3” wide bespoke aluminum mullion with a structurally clamped and sealed glass face, see image below.

Award Winning Project

The Glucksman Library won the Architectural Design Award in the Education category of the Outstanding Property Awards in London.

University of Limerick apa facade systems

University of Limerick - glass fins - apa facade systems

Custom designed facade finish for the Glucksman Library at the University of Limerick

TB50 SG structurally glazed curtain wall system - APA Facade Systems

View All Case Studies

St. Vincent's private hospital - sustainable aluminum windows and curtain wall systems - st vincents hospital

St. Vincent’s Public & Private Hospitals

St. Vincent’s Public & Private Hospitals Dublin The Brief System Used: TB35 HI Curtain Wall System, ST70 Windows & Doors, Louvers

26th May 2021

402 Dunsmuir Street - Amazon - APA Facade Systems

402 Dunsmuir – Amazon Vancouver

402 Dunsmuir – Amazon Vancouver The Brief Certifications:LEED® Gold certificationLocation:Vancouver, CanadaSize:14,148 m² (152,290 ft²)Client:Oxford Properties Group Located in the

2nd October 2019

Olympic Way

Olympic Way London The Brief System Used: TB50 Curtain Wall ST80 & ST70 Windows Location: London Client: Donban Construction Architect: HTA Design The

31st May 2021

The Roy

Halifax, Nova Scotia, Canada

The Brief

System Used: TB50 Curtain Wall, ST80 Windows, ST80 Door Systems, Sliding Doors

Contractor: Ellis Don

Architect: IBI Architects

System Partner: Flynn Group of Companies

APA Facade Systems recently completed works on The Roy in Halifax. The Roy is located in the historical warehouse district at 1650 Granville Street. A $50 million development by Starfish Properties, this modern 22-story ultra-luxurious condominium has a total of 86 condos. Below this, it features 3 floors of commercial space and 4 floors of above-grade parking, serviced by 2 vehicular elevators.

The Design

The Roy has a beautiful contemporary style, exquisite amenities and unrivaled views across Halifax. Designed by IBI Group, the facade treatment of the tower is handled in two distinct ways. The east and south elevations are treated with undulating articulated aluminum curtain wall and the north and west elevations will be brick-clad with a fenestration pattern, like the neighboring Johnston Building.

Systems Used

APA Facade Systems worked in conjunction with Flynn Group of Companies on this prestigious project. We provided Flynn with our design-assist service and manufactured our TB50 curtain wall system and high-performance ST80 windows and doors. Our systems cover the majority of the 325,000 sq. ft. building, which was completed in July 2019.

Here at APA Facade Systems, our team is committed to excellent environmental practice towards a greener, more sustainable environment. Our aluminum glazing profiles are designed and manufactured to conform with industry environmental standards, helping you achieve a silver, gold or platinum LEED certification.

Common Area - The Roy - APA Facade Systems

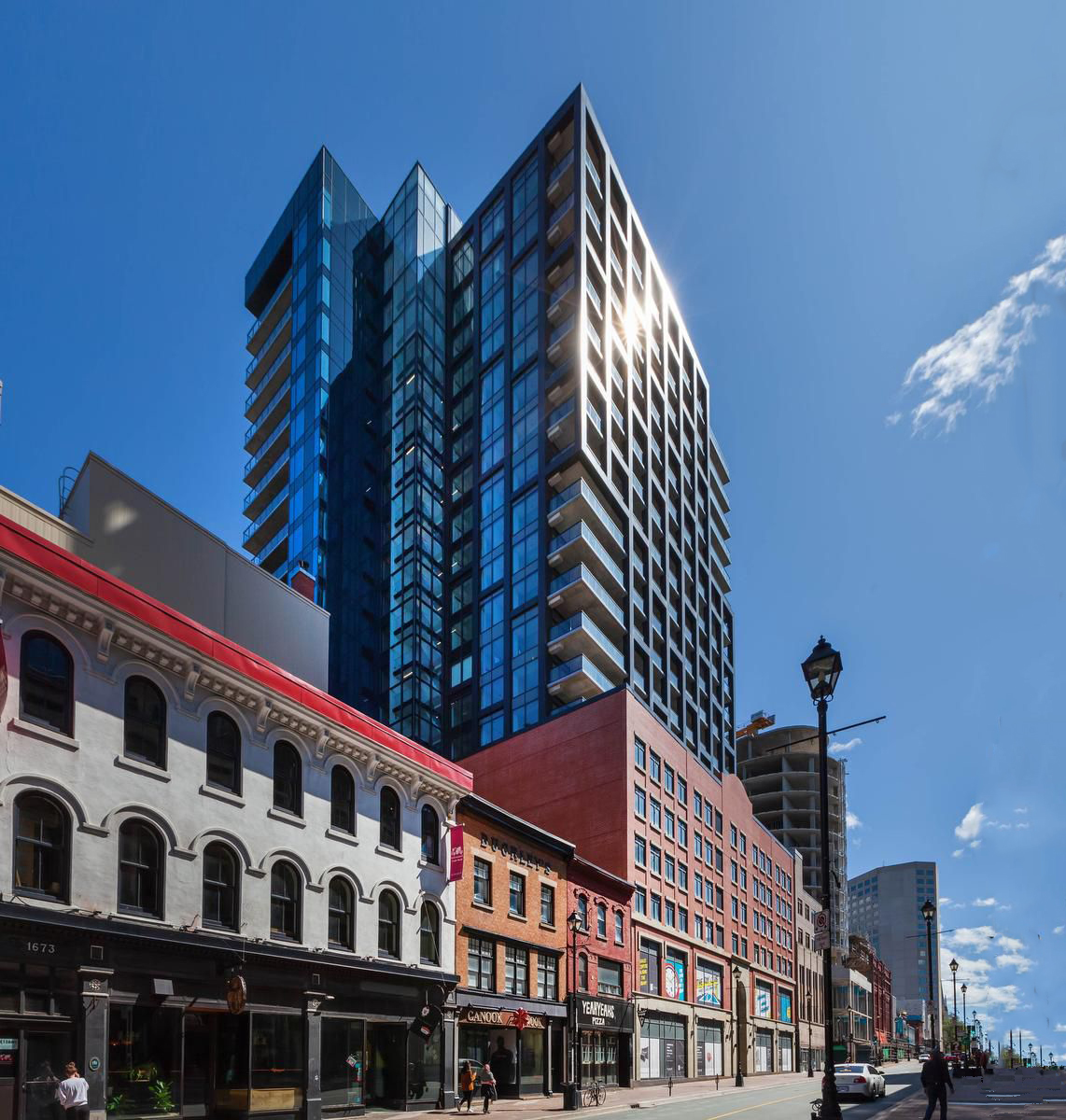

glass exterior of a large high rise building

inside the luxurious condominium at The Roy, Halifax Canada

View All Case Studies

Alexion Pharmaceutical

Alexion Pharmaceutical Dublin The Brief System Used: TB50 SG Curtain Wall & TB50 SG CFA Location: Dublin Client: Stewart Construction & Conack

26th May 2021

Grifols International Logistics Centre

Grifols International Logistics Centre Dublin The Brief System Used: TB50 SG Curtain Wall & TB50 SG CFA Glass Fins Location: Dublin

28th May 2021

60-74 Gansevoort New York

60 – 74 Gansevoort New York The Brief System Used: ST70 Hi Window System Location: Meatpacking District, New York Client: Aurora

18th May 2021

The Bergeron Centre For Engineering Excellence

The Bergeron Centre for Engineering Excellence

York University Toronto

The Brief

Certification: LEED Silver

System Used: TB50 Structurally Glazed Curtain Wall System

Location: York University, Toronto

Client: Laing O Rourke

Architect: ZAS Architects

The Bergeron Centre for Engineering Excellence officially opened on April 8th, 2016. Designed by ZAS Architects + Interiors and built by construction firm Laing O’Rourke, it is the new home of the Lassonde School of Engineering.

The building is designed with a student-centric philosophy in mind that challenges the look of a traditional engineering school. The structure’s unique architectural design reflects its main purpose – a hub for entrepreneurship, collaboration and creativity.

Complex Design

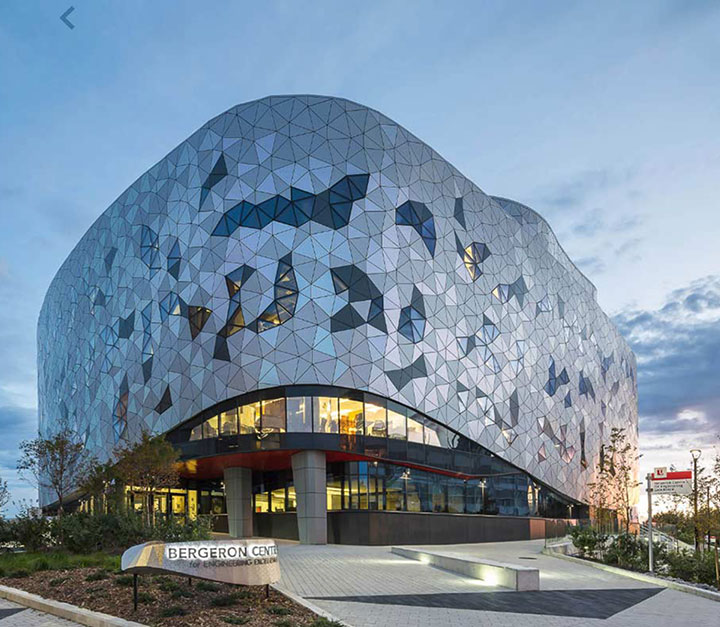

The Bergeron Centre for Engineering Excellence has a cloud-like triangular glass facade, it’s comprised of a series of triangles positioned according to a precise and complex algorithm. Evoking the properties of a cloud, it reflects light and pattern across campus and into the interior.

The Challenge

As the intricate triangular-shaped facade design on the Bergeron Centre was arranged in a mathematically derived Penrose Pattern that never repeats. This meant that every one of the buildings 8,000 triangular metal panels and windows were unique.

Our structurally glazed TB50 curtain wall system was installed on this project. The glass is secured by means of specially designed toggles providing the external facade with a flush, uninterrupted surface.

Sustainability

The Bergeron Centre received Silver LEED Certification, proving it to be a highly efficient, cost-saving, green building.

Our team is committed to excellent environmental practice towards a more sustainable environment. Our aluminum glazing profiles are designed and manufactured to conform with industry environmental standards, helping to achieve silver, gold or platinum LEED certification.
