Tilt & Slide Window

Our Tilt & Slide Window system is compatible with all of our ST window profiles. It comes with excellent thermal and acoustic performances and provides two different ventilation options.

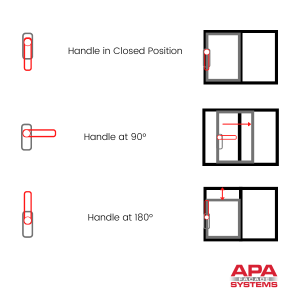

Turning the handle at 90 degrees opens the sash as a sliding window. When the handle is turned to 180 degrees, the sash tilt’s inwards from the top to let in a light breeze, blocking any rain and wind. The opening and closing functions are controlled centrally via the handle.

Tilt & Slide Window

The tilt & turn window system comes with a maximum sash size of 900mm x 1500mm*. It is an excellent solution for multi-level residential projects and office developments. Check out exactly how the mechanism works through this short video.








*Maximum sash size depends on glass thickness and weight. Please consult with the APA technical team for more specific performance information.

For more information on our Tilt & Slide window system, get in touch with a member of our team through the form below.

  • Includes multi-point locking for added security
  • Superb thermal performance
  • Eco-friendly polyamide core
  • Glazing variants are 28mm-42mm up (1.1″-1.6″)
  • Identical sight lines throughout
  • Can be pre-assembled in-house saving installation time/cost
  • Available in dual colour finish
  • Certified to PAS 24 standards
  • Fully tested to current BS EN & AAMAstandards

Frame Depth 60mm / 70mm / 80mm / 90mm
EN ISO 1077-1 UW Whole window value: * 1.6 W/m²K or less
BS 6375-1:2009 Air: Class 4
BS 6375-1:2009 Water: Class E1050
BS 6375-1:2009 Wind: Class A5
BS 6375-2:2009 Operating forces: Class 1
BS 6375-2:2009 Mechanical Strength: Class 3
BS 6375-2:2009 Repeated opening & closing: Class 3
PAS 24:2012 Security classification: Certisecure

*Whole window U values are a combination of the frame and glazing thermal performance and as such will vary with the specification of glass utilised. Please consult with the APA technical team for more specific performance information.
